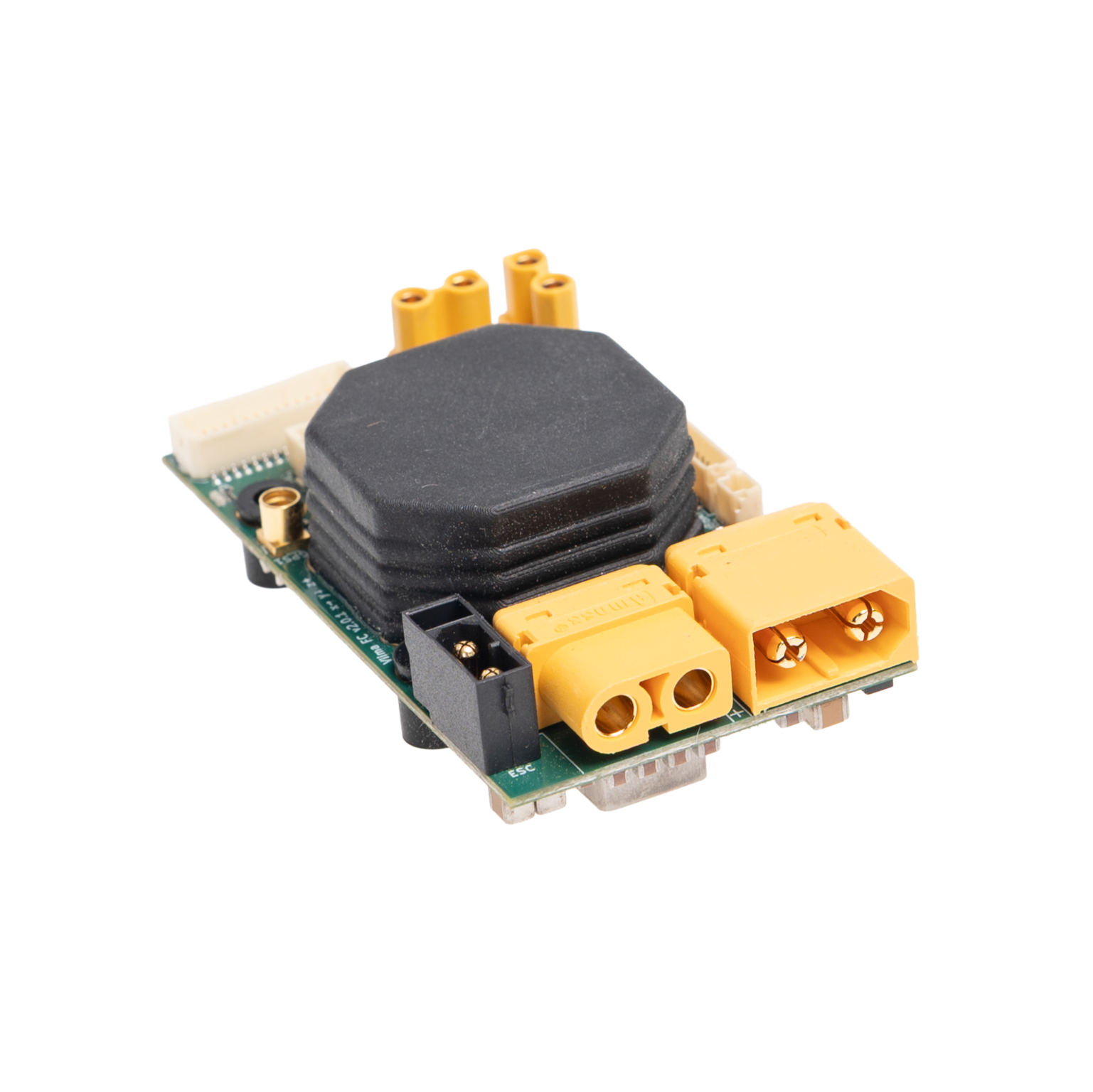

WH7 Autopilot
Powering the autonomous systems of tomorrow
Compact performance mass produced
Built for mass-produced professional UAS and robotic platforms in arctic environments, the WH7 autopilot matches or exceeds the sensor performance of high-end industry-standard autopilots.
It features a built-in PDB with practical power and signal routing tailored for professional gimbals and AI companion computers. Weighing just 40g (including a 15cm wiring loom), the WH7 offers a highly versatile, lightweight solution for diverse robotic form factors.
Build any robotic system
Viima WH7 allows you to build most unmanned system types from UGVs to quadcopters and planes. Its power distribution board enables you to power all of your periheral equipment directly from the board. Mounting holes lets you stack 4in1 ESCs through 30,5mm square mounting pattern.
Two high density JST SH- connectors enable to quickly connect peripheral equipment such as gimbals, video transmitters and RF equipment with custom wiring looms.
Built for fast assembly
Viima WH7s integrated UM982 L1/L2/L5 GNSS module with dual antennas enable accurate GPS heading and redundant connectivity.
High quality dual GPS
Viima WH7 features a powerful programmable heated sensor module that allows fast heating and consistent sensor output even in the coldest of environments. The PDB also supports up to 12V battery heater driver.
Built for arctic operations
Specification overview
Weight: 40 grams (FC, interface board and 15cm cable)
Size (L x W x H): 67 x 38 x 19.8 mm
Mount holes: 30.5 x 30.5
Input voltage: 8 to 55 V
Bi-directional current measuring up to 200A
Firmware support: Ardupilot (PX4 coming soon)

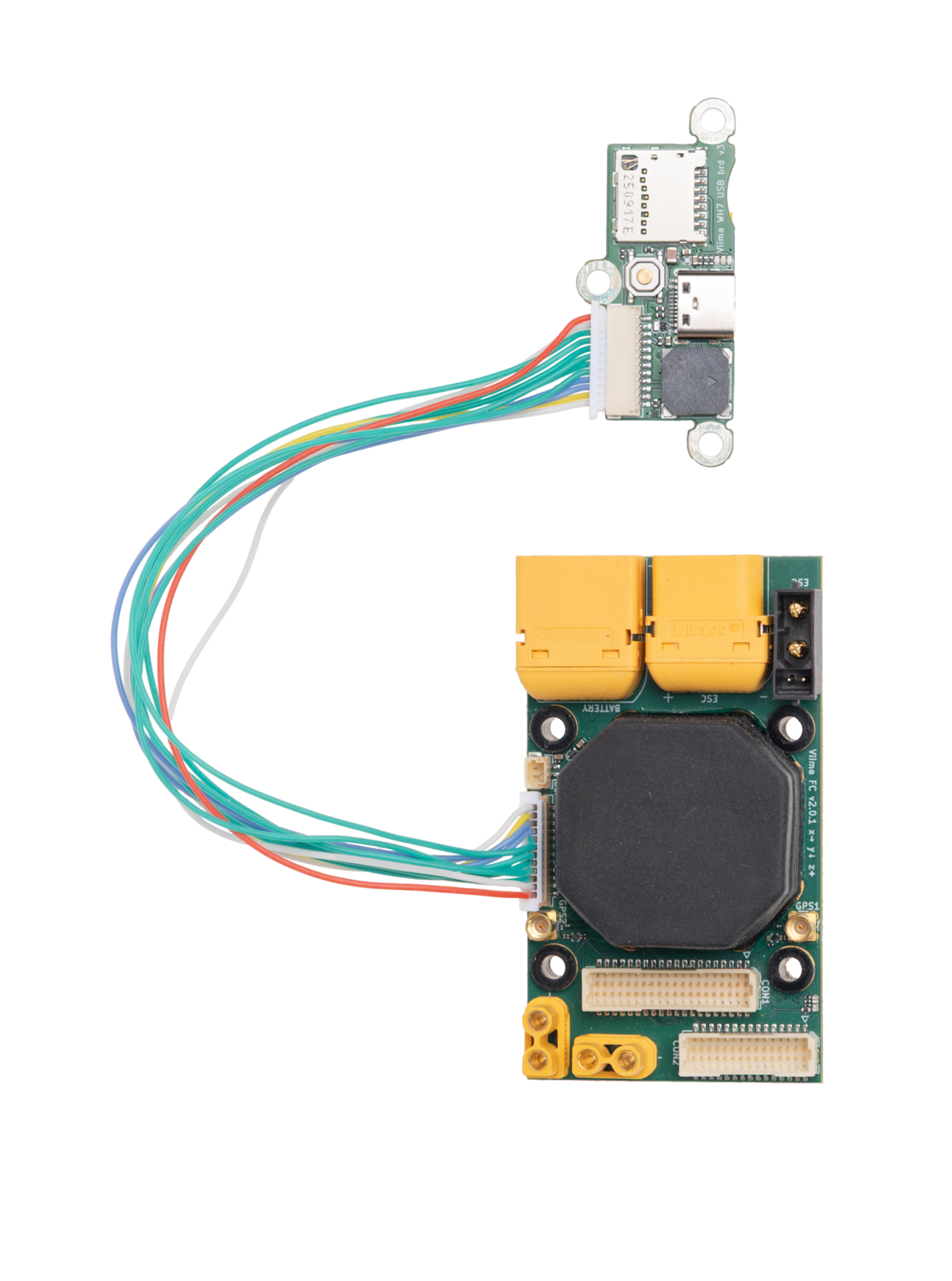

Separate USB connector board with buzzer, USB 2.0C, DFU button and micro SD slot
Backup power option: RPi RTC battery
12 PWM / DShot outputs
6 UARTS
Viima WH7
What is included?
WH7 is shipped with:

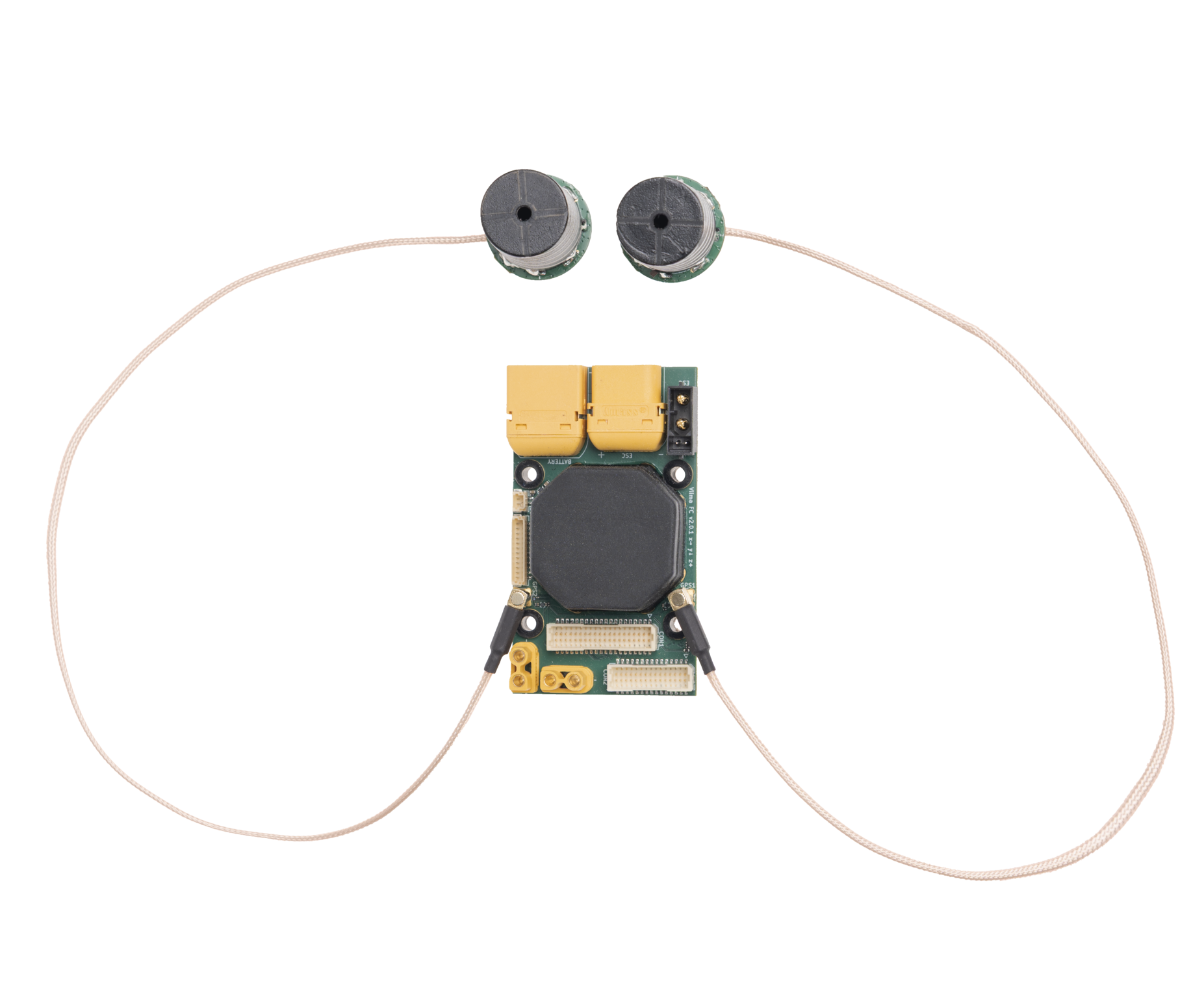

Two GPS receiver antennas
Interface board equipped with buzzer, micro-SD slot, USB 2.0, status LED and DFU mode button
Set of different length cables and connectors for your first build

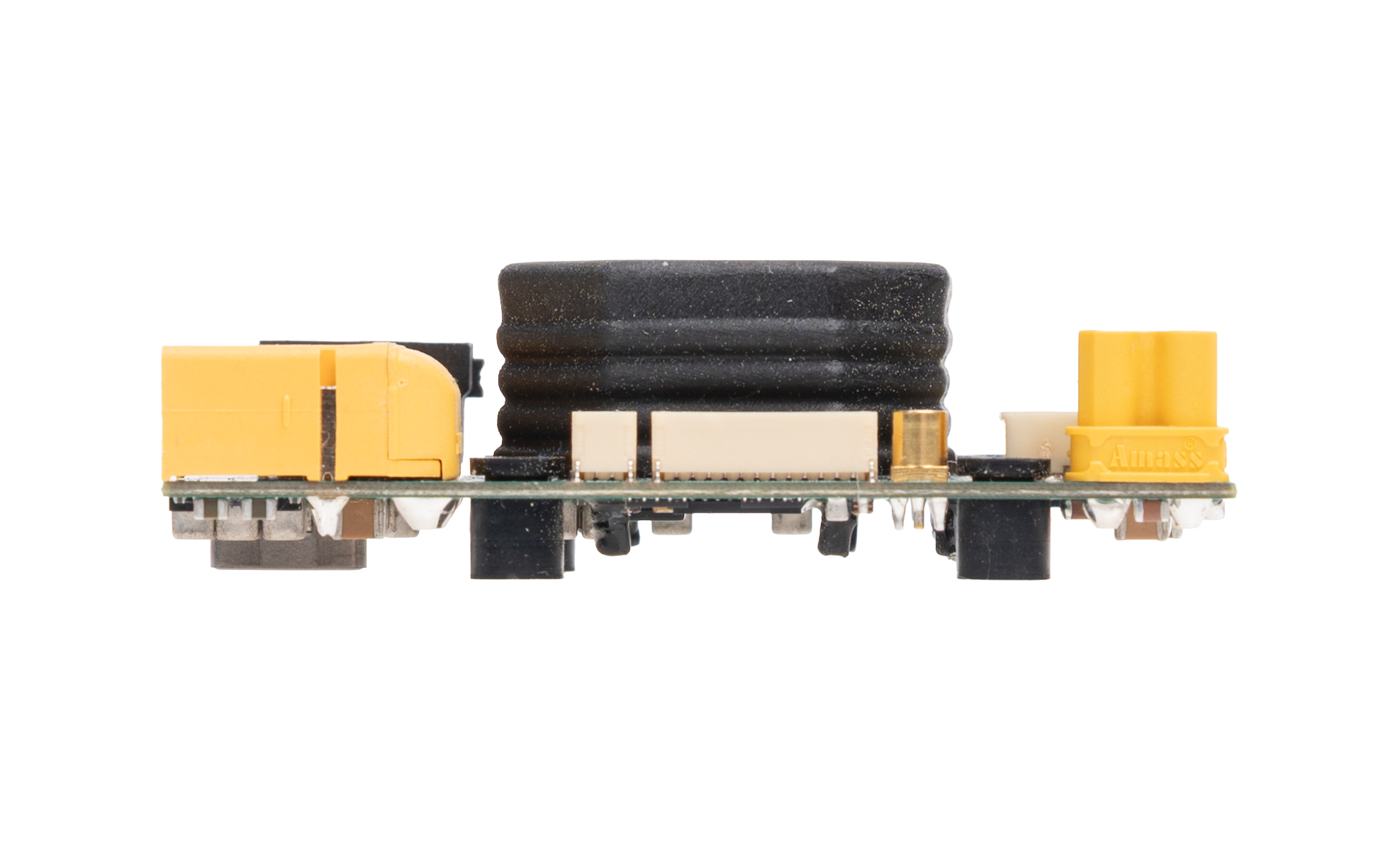

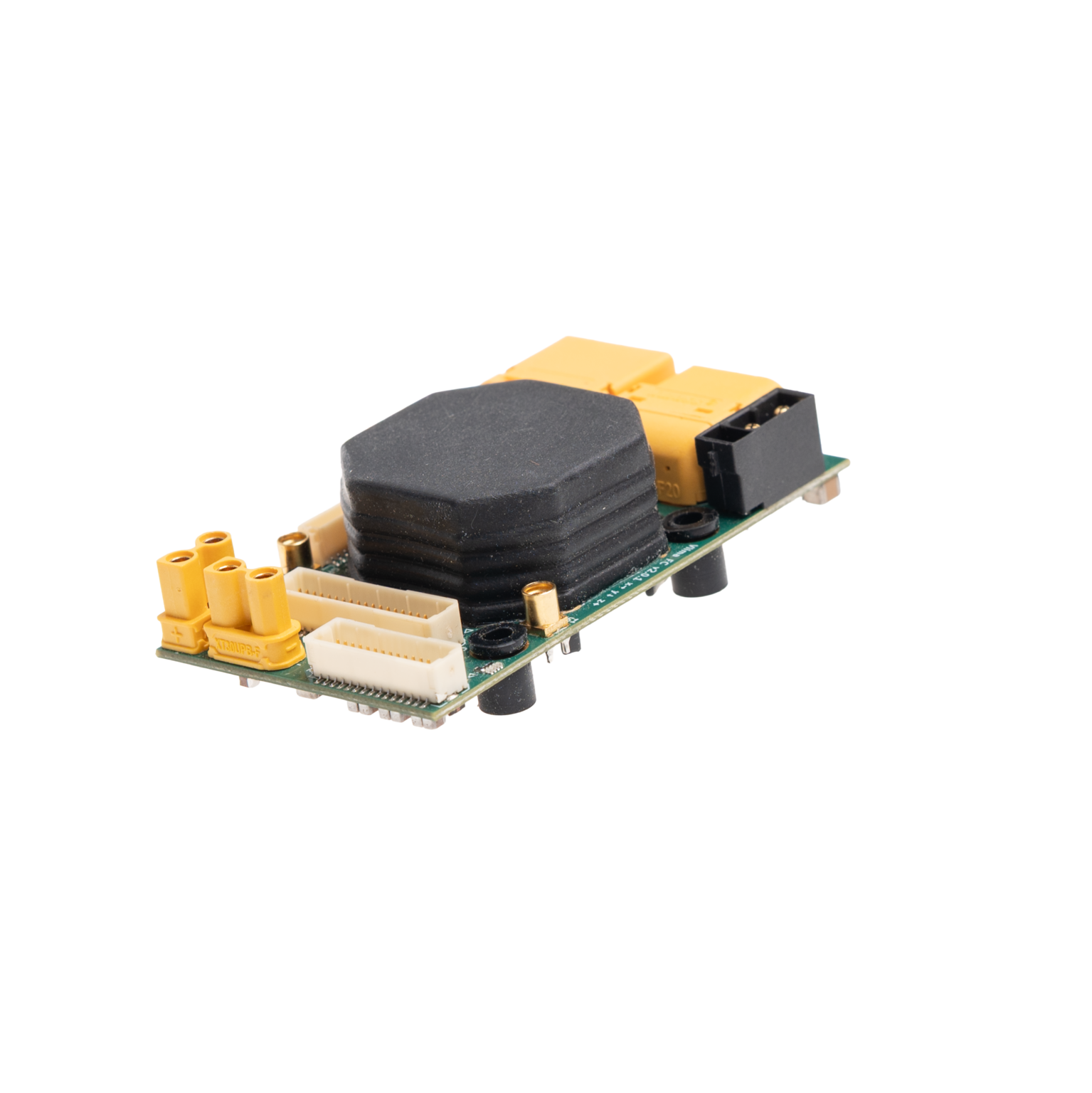

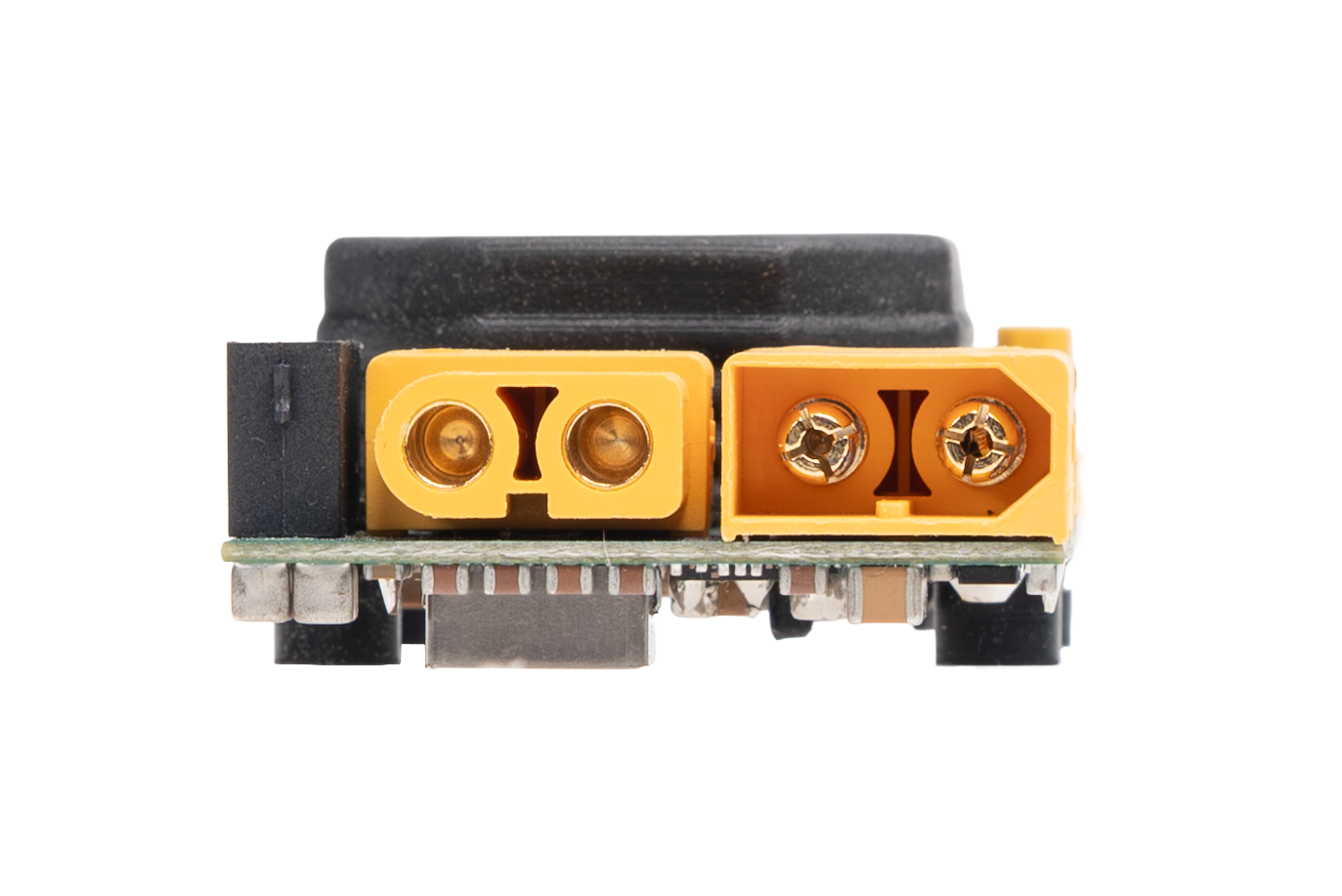

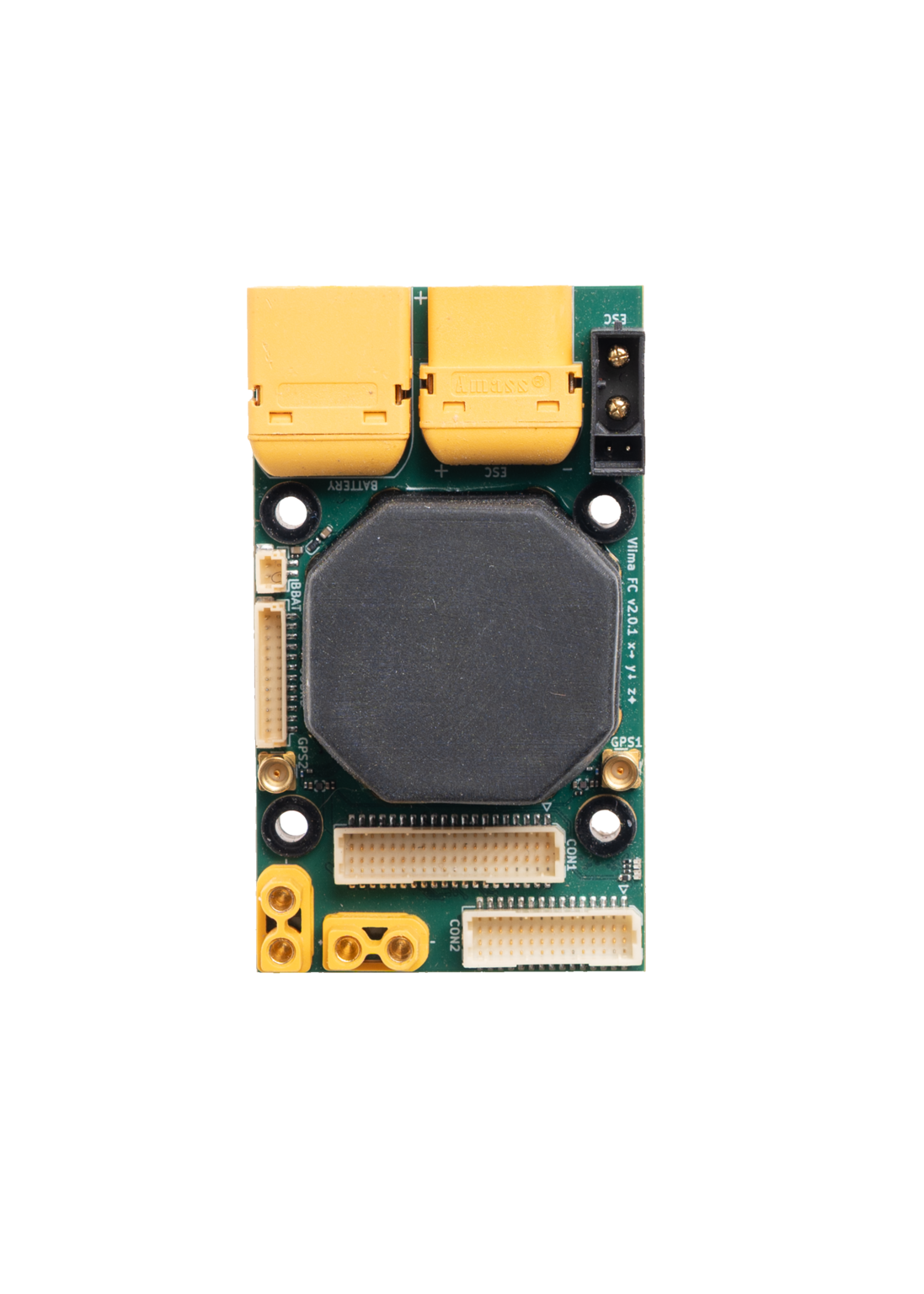

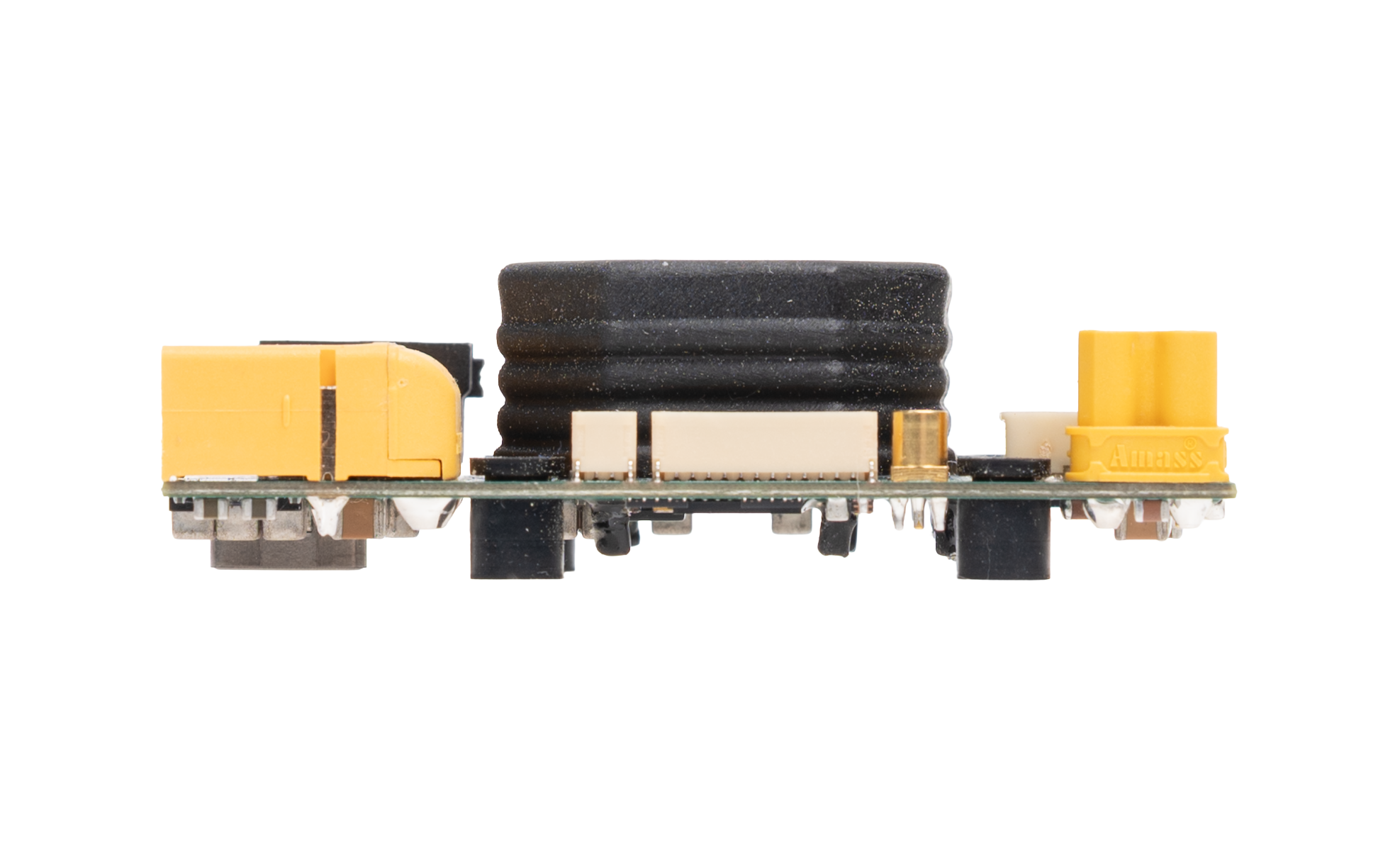

Sensor board and PDB shown in pictures
Gallery
In our public downloads folder you will find technical drawings, detailed datasheet, comparison table, pinout diagram and connector design guide.
Downloads
WH7 autopilot available in August 2026
WH7 autopilot will be available for direct puchase here in our website in August 2026. PX4 firmware support will be coming soon after launch. Please contact us if you are interested in NDAA version or larger bulk orders for discounts. First orders will be delivered within 1 month from official launch date.
